Competitor Swim Racing Lanes

Proven Performance… whether at a local meet or in front of the world.

Competitor Swim  is the leader in racing lane technology, comprised of discs and donuts with flow through technology that allow for turbulence control the entire length of the lane, eliminating dead spots and water bounce-back. Internationally recognized for both its Competitor® racing lanes and the more recent Gold Medal racing lanes, introduced at the 1992 Summer Olympic Games in Barcelona, Spain.

Each lane is made up of a series of 4-inch or 6-inch polyethylene discs and donuts assembled on a vinyl coated stainless steel cable, preventing rusting of the cable.

Competitor racing lanes are attached to the pool wall using a stainless steel spring at one end, and a stainless steel and bronze ratchet reel at the other for proper tension. For safety purposes the take up reel is designed to be tightened with a removable wrench. This prevents individuals from manipulating the lane lines.

Competitor’s lanes may be custom designed as they are assembled to your specifications to offer any color pattern you can imagine! Please see the Competitor Swim Color Chart for all available colors.

Shipped fully assembled and meeting all FINA, USA, NCAA and NFHS standards.


Large and Small Disc Color Options

colorchart_segment

Donut Color Options

colorchart_donut

racelane_composite02

Competitor Swim 4″ inch Racing Lanes

Covers products starting with COMPETITOR PART No# 200329000 through 200345000.

Each individual disc measures 4 inches in diameter and consists of a series of 5 fins projecting from the center hub. Mid way on the length of the disc hub is a radially extended web member, which supports an annular-section ring-shaped flanges in co-axial relationship with the central bore. To assist in damping the longitudinal wave forces, the web member is formed with a multiplicity of circular openings. The web in conjunction with the multiple fins combine to impede, aerate, dampen and break up the other. Both the web and the fins functions are very important in that most waves will not intersect the lane in a perpendicular manner.

Small_Composites_Middle

Product #
Description
Diagram
200329000Standard 60' LaneSchematic Diagram
200330000Standard 75' LaneSchematic Diagram
200331000Standard 25m Lane (82')Schematic Diagram
200332000Standard 50m Lane (164')Schematic Diagram
200333000Special Lane Per Foot + Hardware (separate)Coming Soon
2003390007' Disconnect SectionComing Soon
20034000014' Disconnect SectionComing Soon
20034100025m Lane (82') w/ removable piece to convert to (1) 75' LaneSchematic Diagram
20034200050m Lane (164') w/ removable piece to convert to (2) 75' LanesComing Soon
20034300050m Lane (164') w/ removable piece to convert to (1) 75' LanesComing Soon
20034400050m Lane (164') w/ removable piece to convert to (1) 75' Lane and (1) 25m LaneComing Soon
20034500050m Lane (164') w/ removable piece to convert to (1) 25m LaneComing Soon

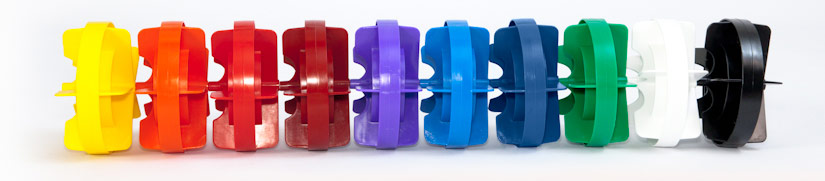

Competitor Swim Gold Medal 6″ inch Racing Lanes

Covers products starting with COMPETITOR PART NO# 200371 through 200387.

Each COMPETITOR lane consists of a series of 6” plastic discs and donuts strung on a vinyl coated 3/16ths inch stainless steel cable. Each disc is designed to rotate independently of the others allowing the swimmers wake energy to be absorbed and dispersed along the channel provided within the lane. This feature allows for a consistency of wave quelling from one lane to another, a unique feature not found in other products on the market.

Large_Composites_Middle

Product #
Description
Diagram
20037160' Gold Medal LaneSchematic Diagram
20037275' Gold Medal LaneSchematic Diagram
20037325m Gold Medal Lane (82')Schematic Diagram
20037450m Gold Medal Lane (164')Schematic Diagram
200375Special Lane Per Foot - Ordered by Foot + Hardware (separate)Coming Soon
2003817' Gold Medal DisconnectComing Soon
20038214' Gold Medal DisconnectComing Soon
20038325m Gold Medal Lane (82') w/ removable piece to convert to (1) 75' LaneSchematic Diagram
20038450m Gold Medal Lane (164') w/ removable piece to convert to (2) 75' lanesComing Soon
20038550m Gold Medal Lane (164') w/ removable piece to convert to (1) 25m lanesComing Soon
20038650m Gold Medal Lane (164') w/ removable piece to convert to (1) 75' lane and (1) 25m lanesComing Soon
20038750m Gold Medal Lane (164') w/ removable piece to convert to (1) 75' laneComing Soon


Competitor Swim Replacement Parts

To place an order for replacement parts contact us at sales@competitorswim.com.

Product #
Description
Image (click to enlarge)
200200000Take Up Reel (Includes Cover and Allen Wrench)
200000140Take Up Reel Cover (red)
2002020005/8" Wrench (10" length) Single Ended for use with #200200000
200201000Stainless Steel Spring & Cable Lock
200206000Stainless Steel Cable Lock
2002100003/16" Stainless Steel/Vinyl Coated Cable (per foot)
200347000Body Segments for 4" Racing Lanes (approx. 4 per ft.)
200348000End Segments for 4" Racing Lanes (approx. 4 per foot)
200349000Donut Floats (approx. 2 per foot)

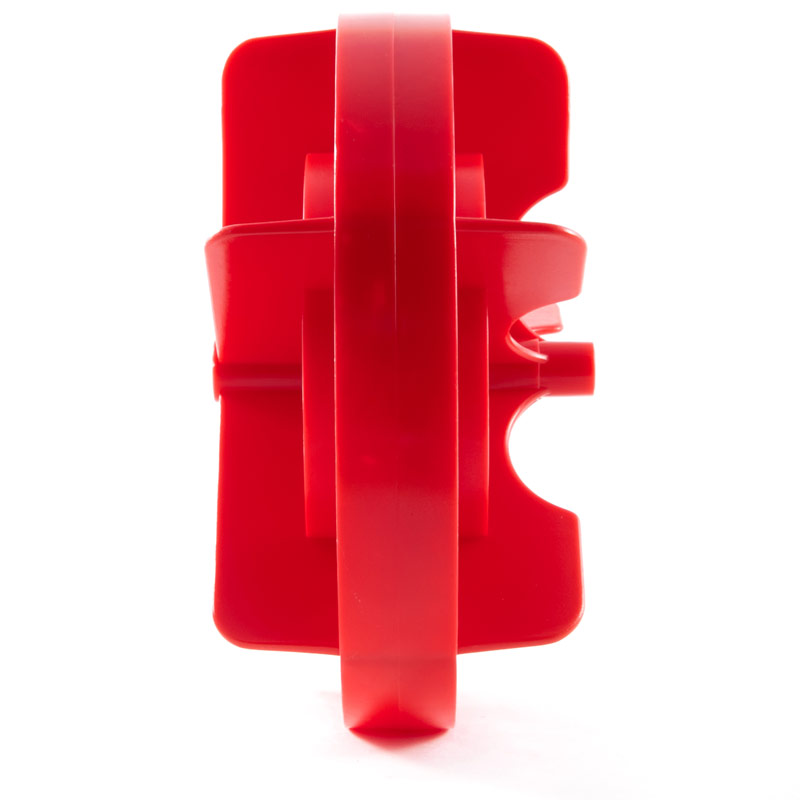

200371001Gold Medal (6") Lane Segment (approx. 4 per foot)
200228000Bronze Clevis Disconnect
200229000Stainless Steel Disconnect Pin
2000000802" Stainless Steel Extension Hook
2002400008" Stainless Steel Extension Hook (w/ rubber coating)
20024100014" Stainless Steel Extension Hook (w/ rubber coating)
20024200024" Stainless Steel Extension Hook (w/ rubber coating)
200245000Stainless Steel Multi-Lane Brackets (pair)


Competitor Swim Special Length Hardware Kits

These kits are used with special length (non standard) lane lanes

Product #
Description
Image (Click to Enlarge)
200333AAAReel & Spring Kit
200333BBB2 Springs Kit
200333CCC2 Clevis & 2 Pins Kit
200333DDD2 Reels Kit
200333EEEReel, Clevis & Pin Kit
200333FFFSpring, Clevis & Pin Kit


Competitor Swim Water Polo (4″ inch FINA Reg Markings)

For Water Polo field assistance, please contact Competitor Swim directly. We can provide a custom diagram for your water polo field.

Product #
Description
200361000Competitor Water Polo Sideline 75' (Fina Markings)
200362000Competitor Water Polo Sideline 25m (Fina Markings)
200363000Competitor Water Polo Sideline 50m with 30m Playing Field
200364000Competitor Water Polo Sideline 50m with 25m Playing Field
200365000Competitor Water Polo Sideline 50m with Dual Player Fields
200366000Water Polo Floating Goal Tether 31' 6"
